EEG - Classes: Class 37

Reclassified	1973
Reclassified by	British Rail
Running Numbers	37001-37308, 37310-37314, 37320-37326
Number Reclassified	308
Information	135 locomotives were refurbished and reclassified to Class 37/4 [31], Class 37/5 [54], Class 37/7 [44] or Class 37/9 [6]. The remainder were reclassified as Class 37/0, although some refurbishments may have occurred before the reclassification took place.

All locomotives of this class have been reclassified. Please look at the overview to see the classification status

Engine	English Electric 12CSVT MKII
Main Generator	English Electric 822-10G, 822-13G or 822-16J
Auxiliary Generator	English Electric 911/5C
Traction Motors	English Electric 538-1A x 6
Locomotive Brakes	Air
Train Brakes	Air, Vacuum
Train Supply/Heat	Clayton Steam Generator, RO2500 MK1-MK3¹
Wheel Arrangement	Co-Co

Note(s)
1	Many locomotives had their steam heat equipment removed prior to reclassifcation in 1973. By the time of reclassification to Class 37/0, the steam heat system was obsolete and where still fitted had been isolated.

Note(s)
1	Locomotives that derived from those that were built with centre indicator panels were fitted with roof mounted warning horns and were therefore higher.
2	Some locomotives had their steam generators removed/isolated and the boiler water tanks then converted to carry fuel instead, extending their range of operations.
3	To avoid situations when working in multiple with refurbished Class 37's, all unrefurbished examples were 'capped' at 80 mph after 1985.

An overview of the history of the 'Class 37' locomotives will appear here

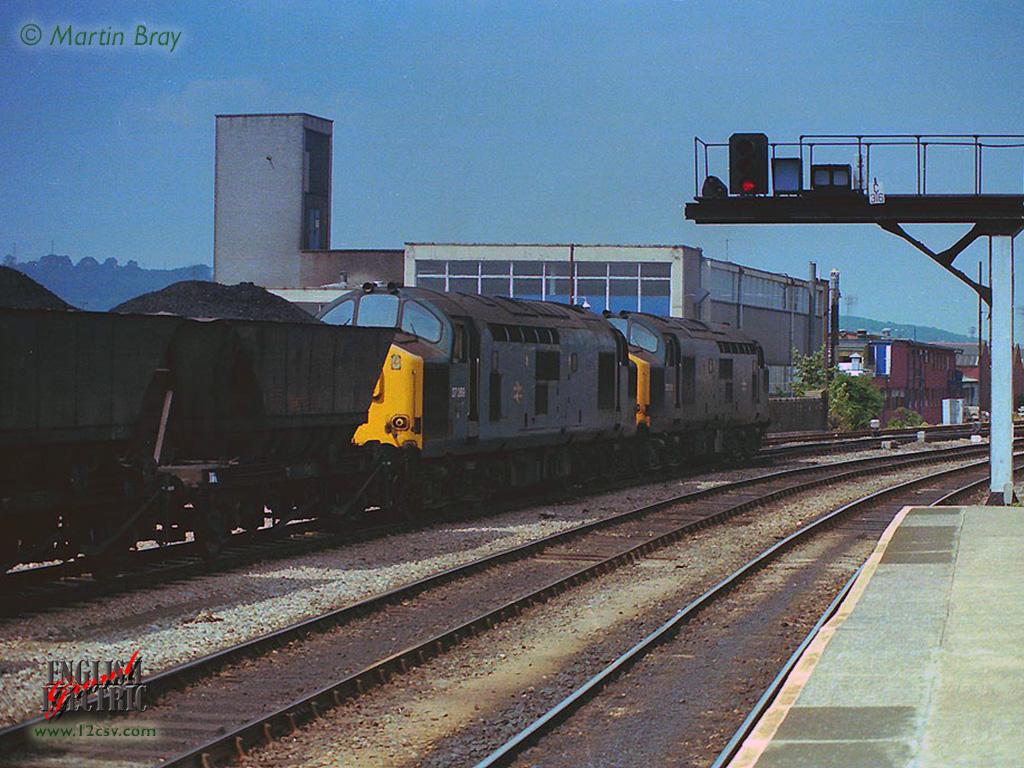

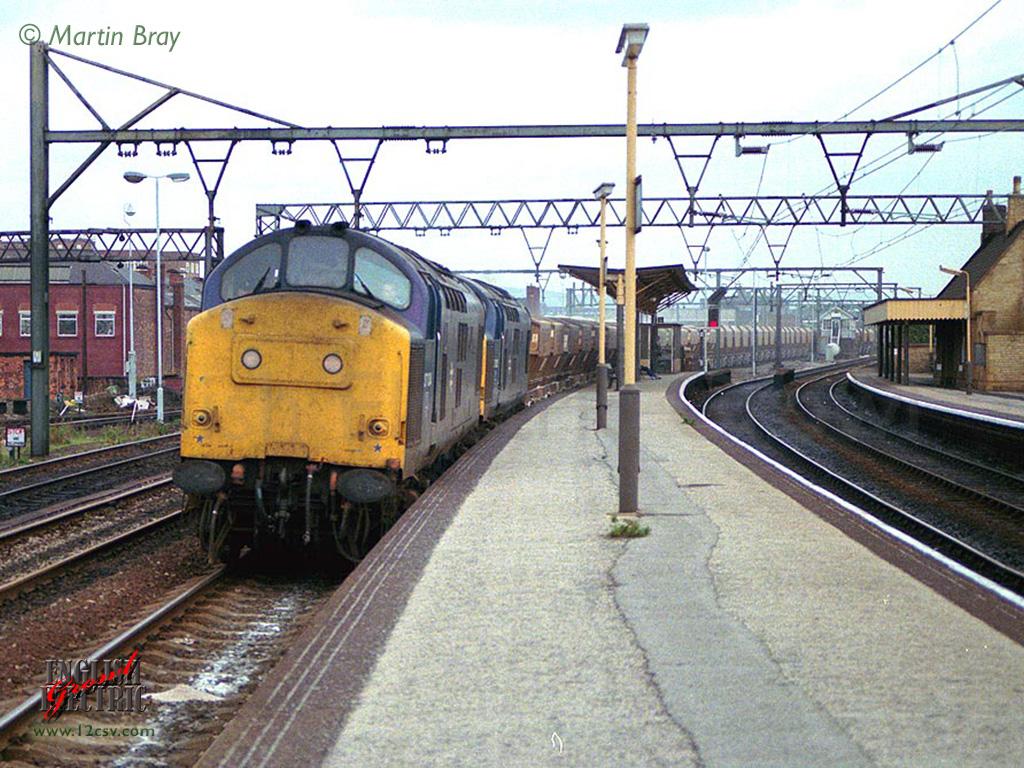

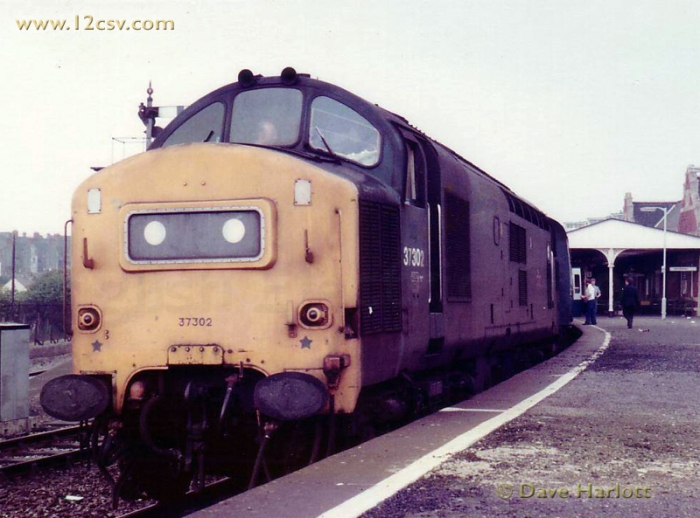

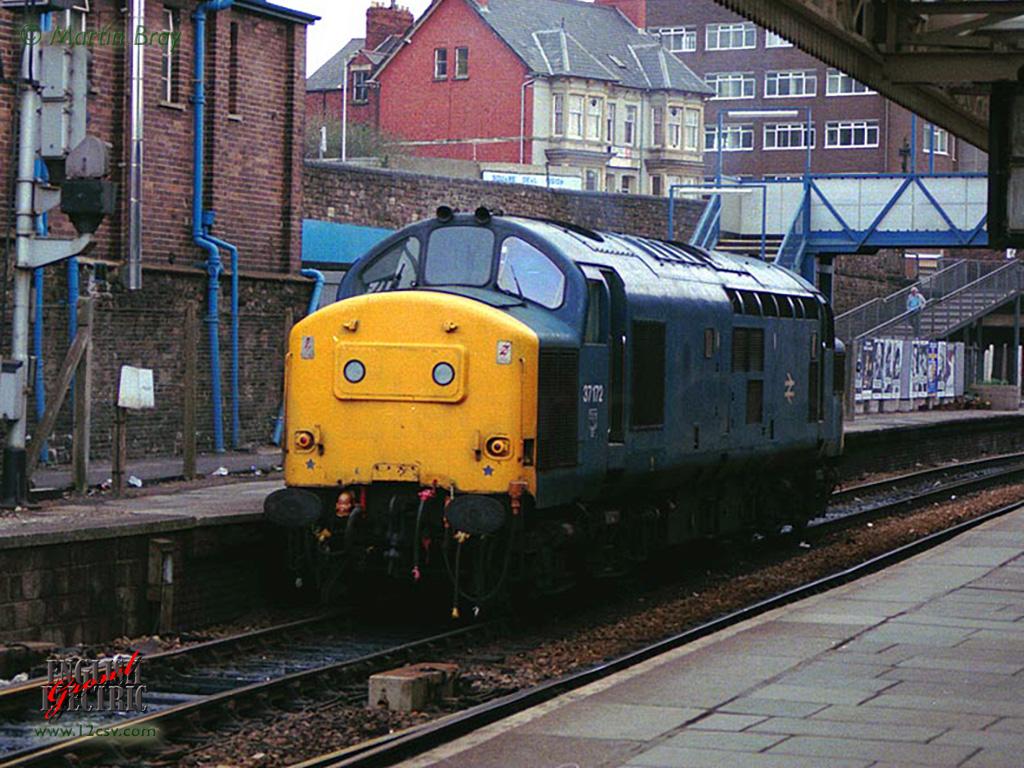

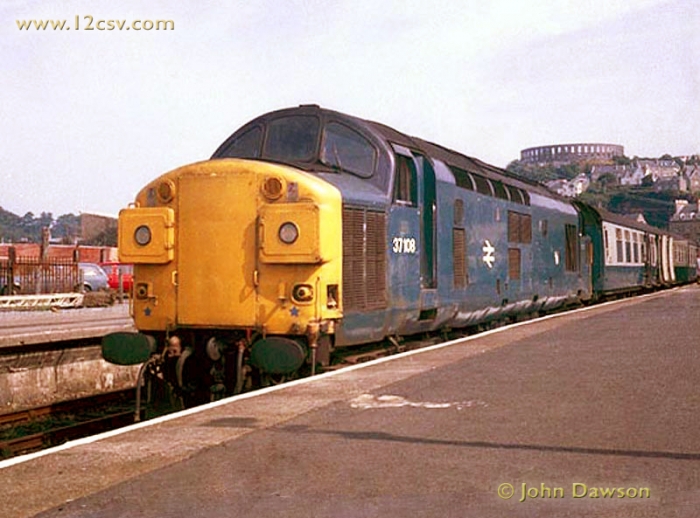

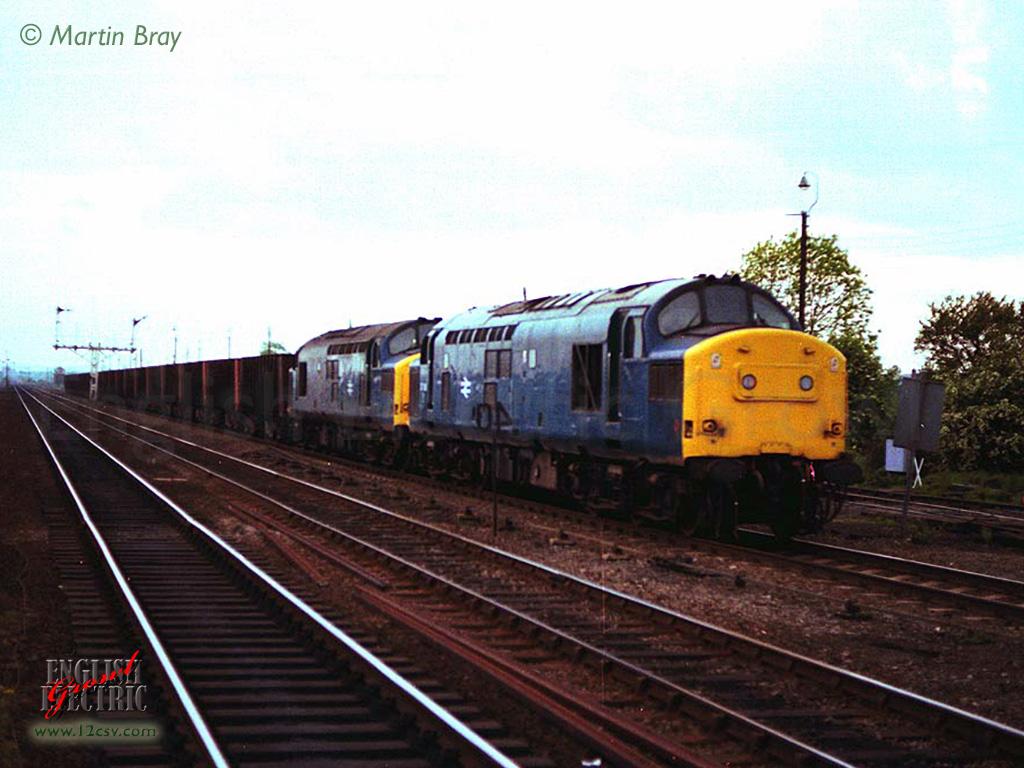

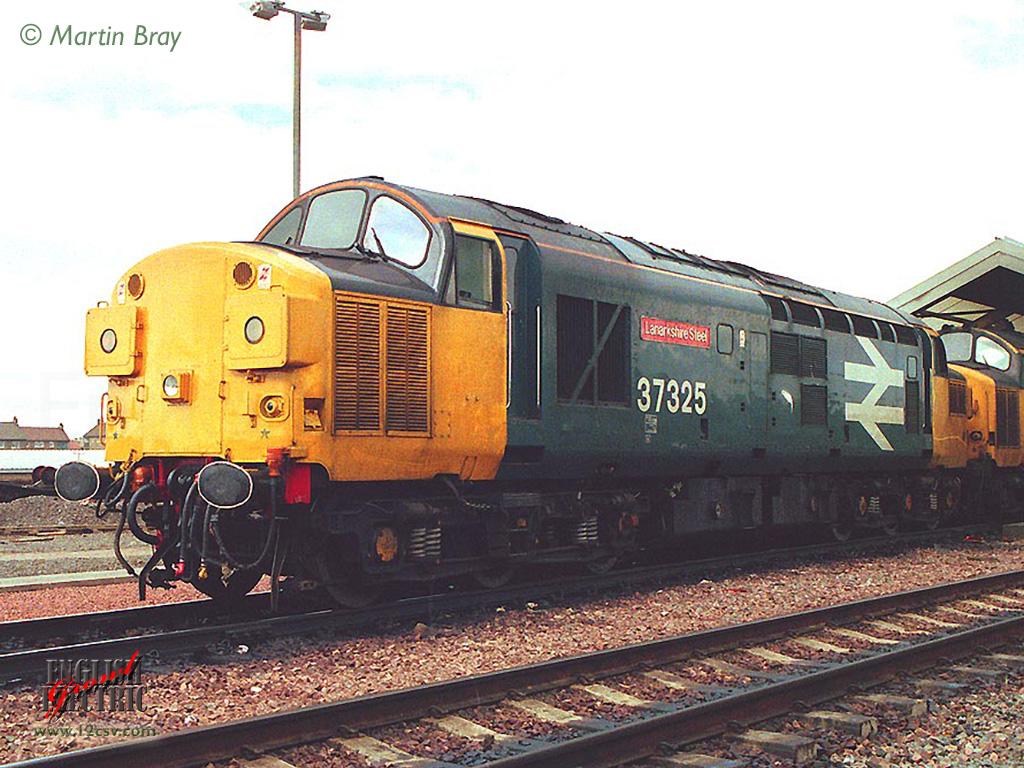

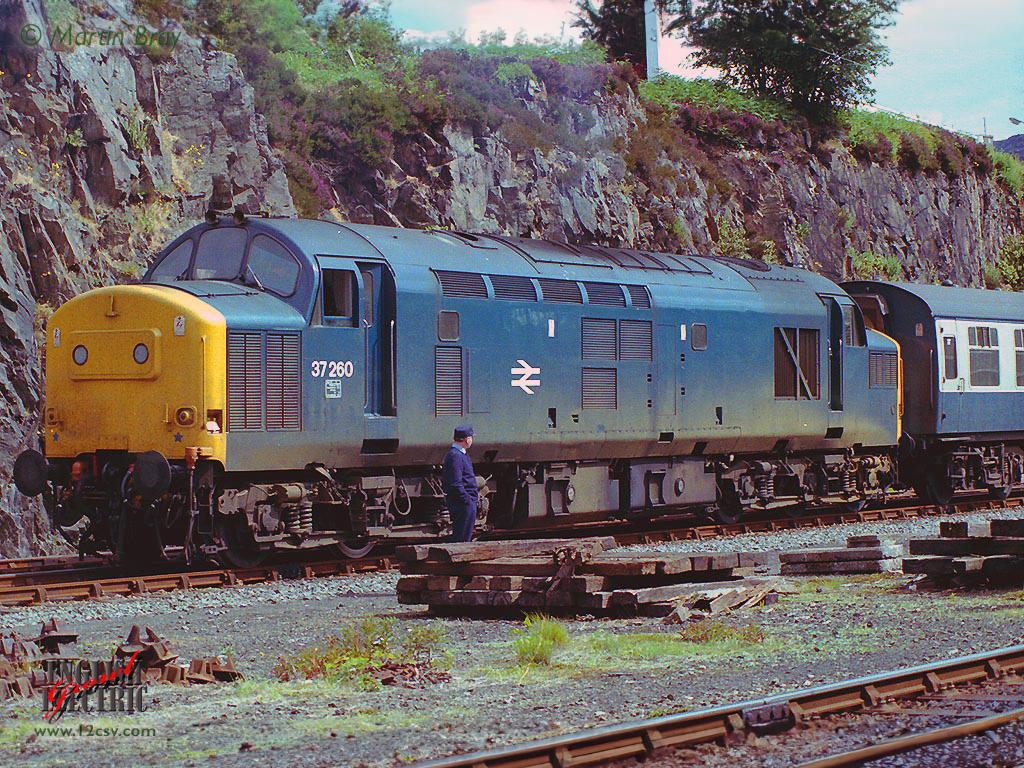

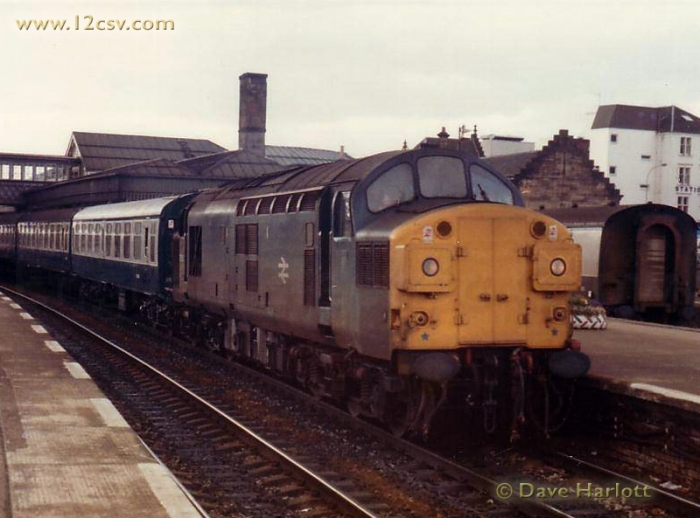

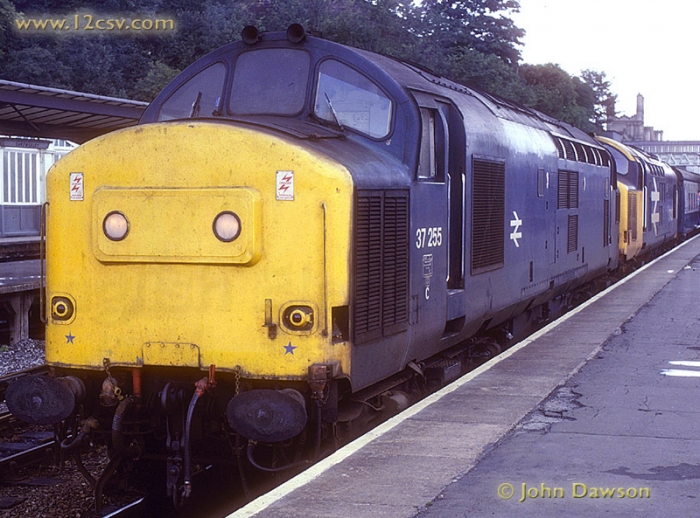

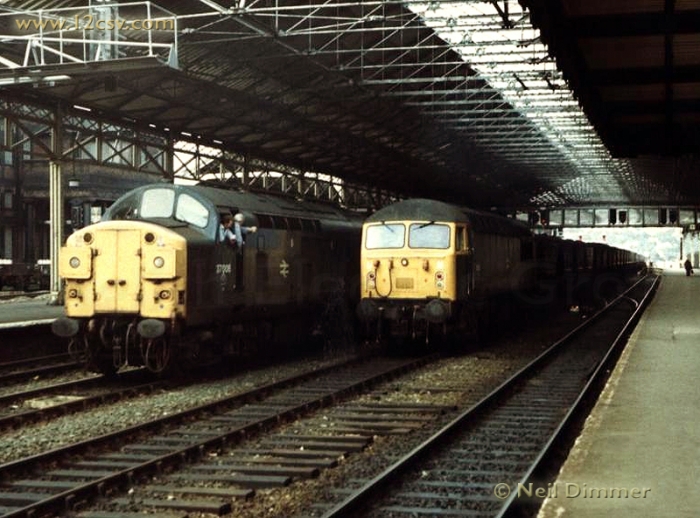

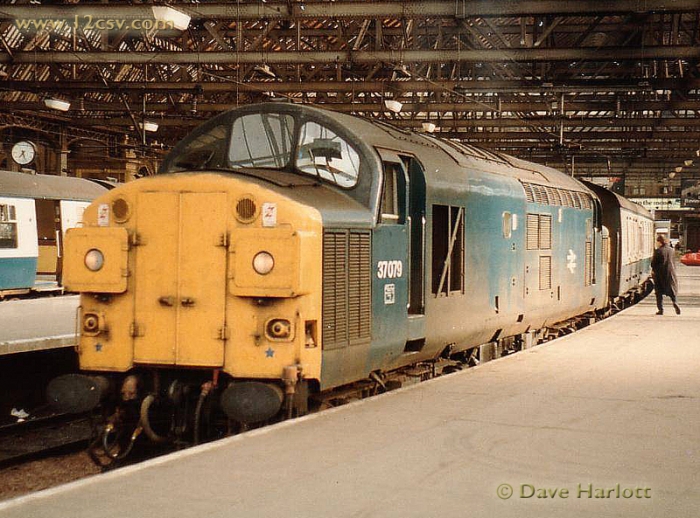

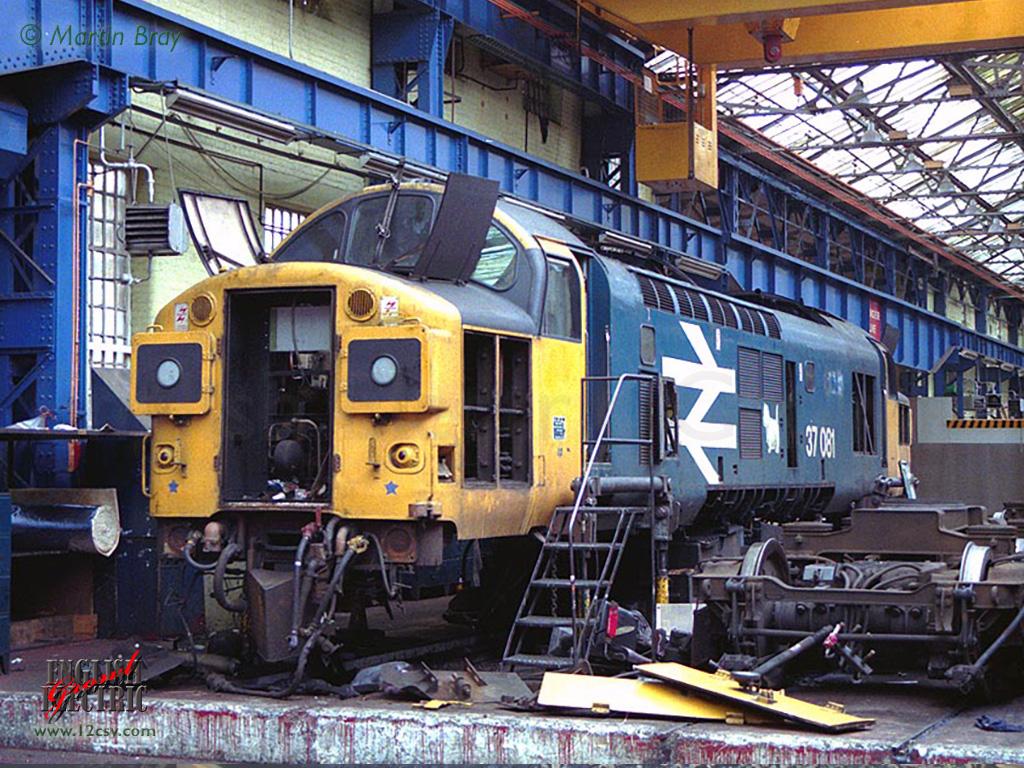

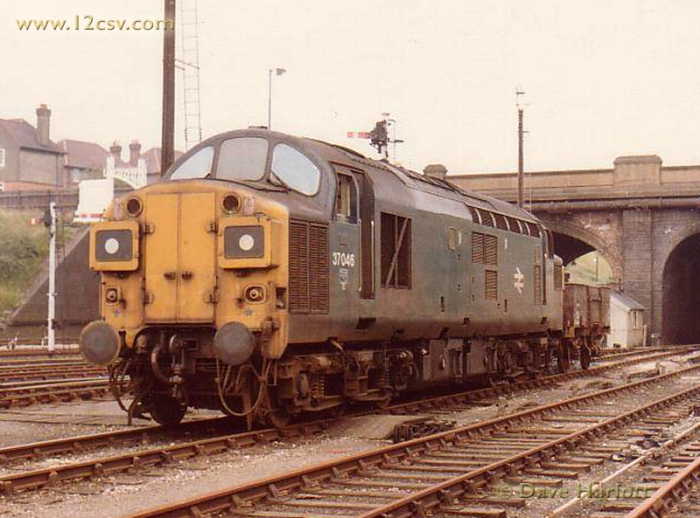

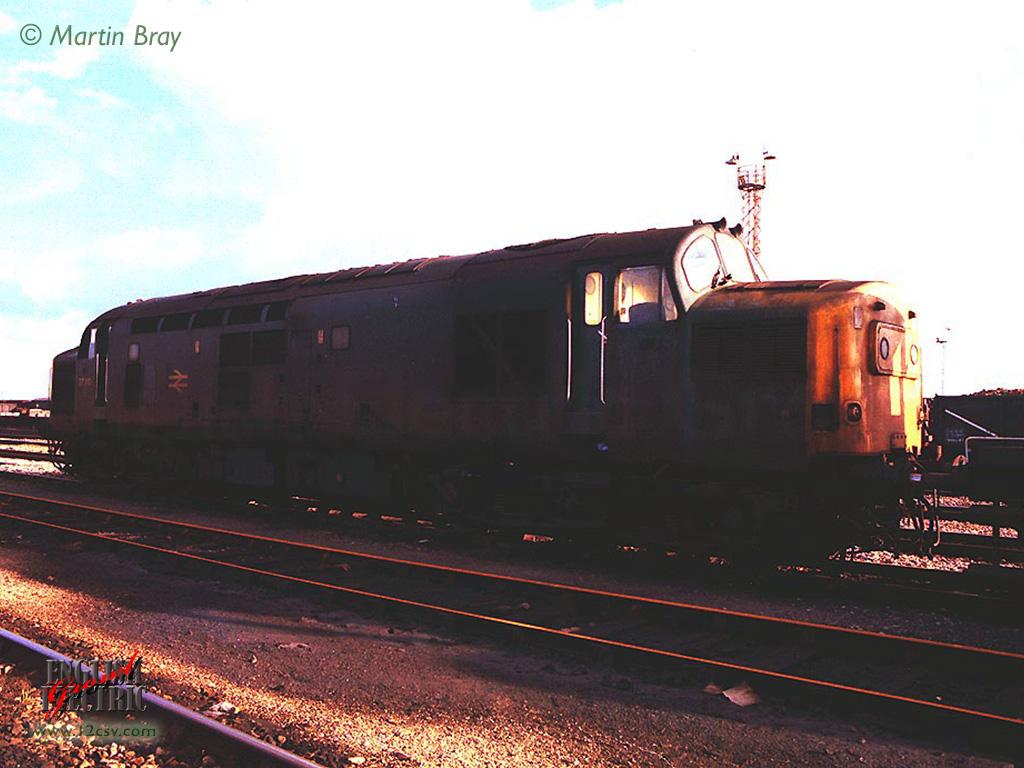

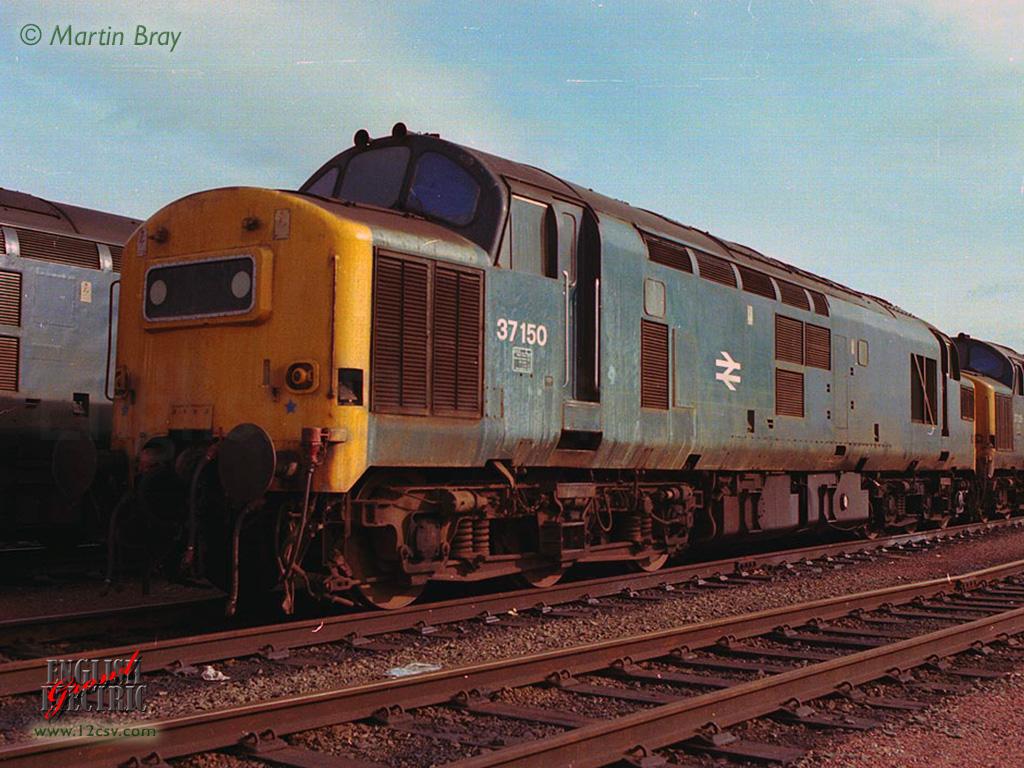

Click on Thumbnails below to see a larger image. [ 392 available ]
